V10K-EX lifting device
10 t full load capacity

Features of the hydraulic jack / machine jack V10K-EX

  • Low construction with fixed tabs on both sides

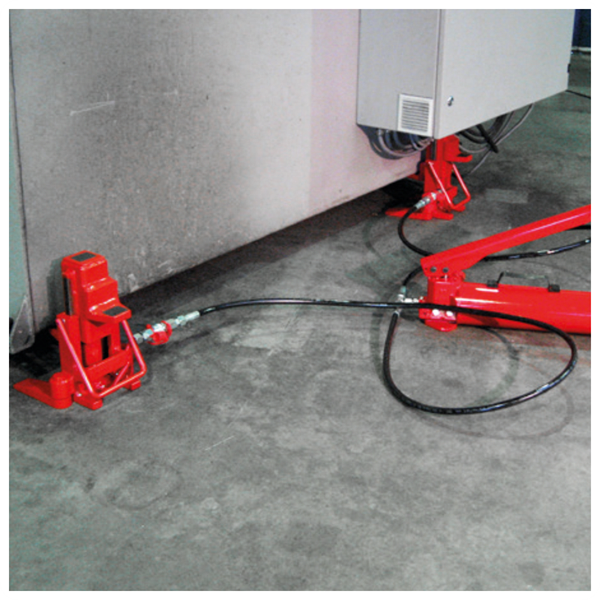

  • It is operated using the PV hand pump (up to two lifting devices), the PE electric pump (up to four lifting devices) or the Q60 synchronous printing unit

  • Without own hydraulics








Technical data V10K-EX

designation Values
item number 11889
Full load kN / t 100 / 10
Working pressure bar 520
Smallest attachment height by means of a bracket mm 20
Lifting height mm 110
Max. Lifting height bracket 1 / bracket 2 mm 130 / 220
Attachment height by means of head plate mm 210
External dimensions (L x W x H) mm 260 x 287 x 210
Dead weight in kg 27,6
