Lifting device V10-EX
10 t full load capacity

Features of the hydraulic jack / machine jack V10-EX

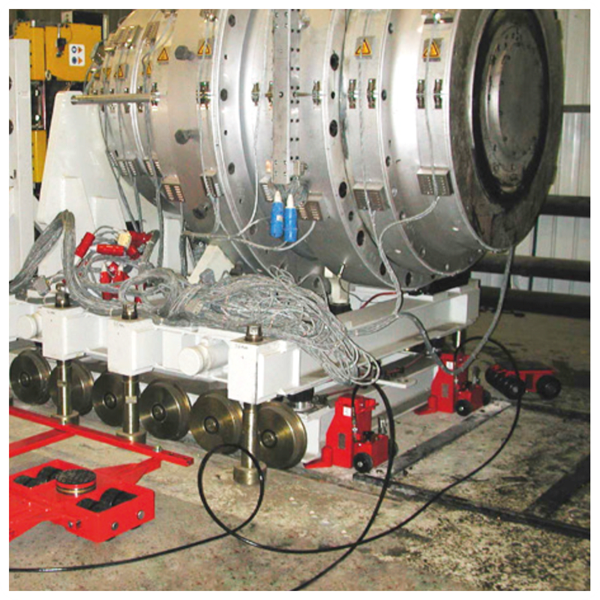

  • Ideal for hard-to-reach places and when a safety distance is required
  • It is operated using the PV hand pump (up to two lifting devices), the PE electric pump (up to four lifting devices) or the Q60 synchronous printing unit
  • Without own hydraulics















Technical data V10-EX

designation Values
item number 10186
Full load kN / t 100 / 10
Working pressure bar 520
Smallest attachment height by means of a bracket mm 20
Lifting height mm 160
Adjustability of the strap 4 x
Attachment height by means of head plate mm 310
External dimensions (L x W x H) mm 280 x 237 x 310
Dead weight in kg 27
